50 Watt Plexi

Built by Bryan James
12/29/00

preamp tubes: sovtek 7025/12ax7
Power tubes: RCA 6CA7
Rectifier tubers: CBS 5U4GB
Power Transformer: Hammond 272jx. My B+ is right at 426volts dc
Output Transformer: OEI 50Watt plexi

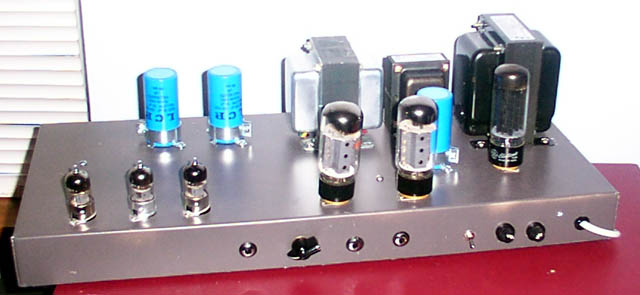

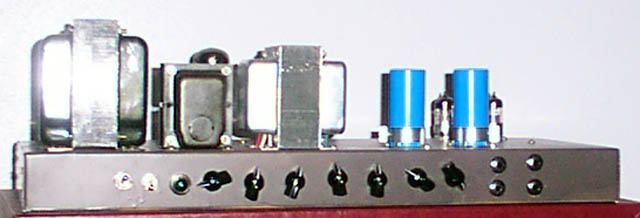

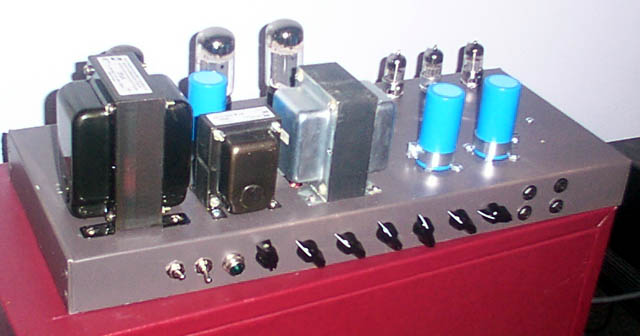

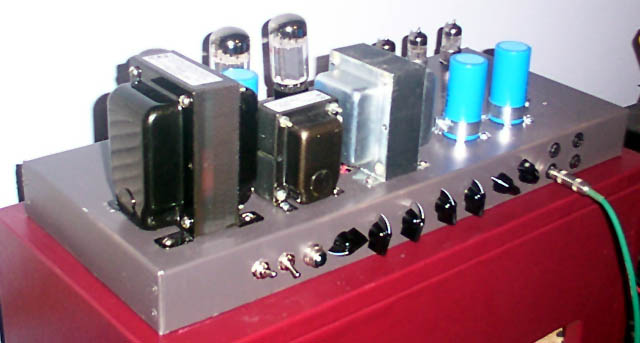

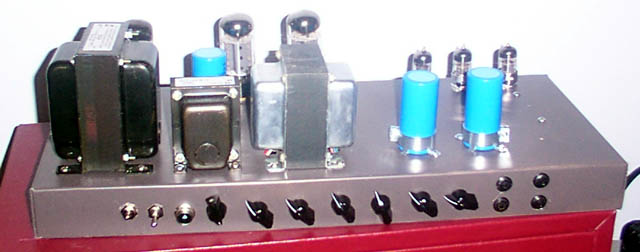

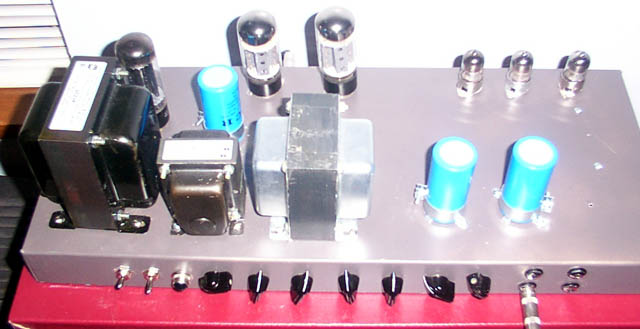

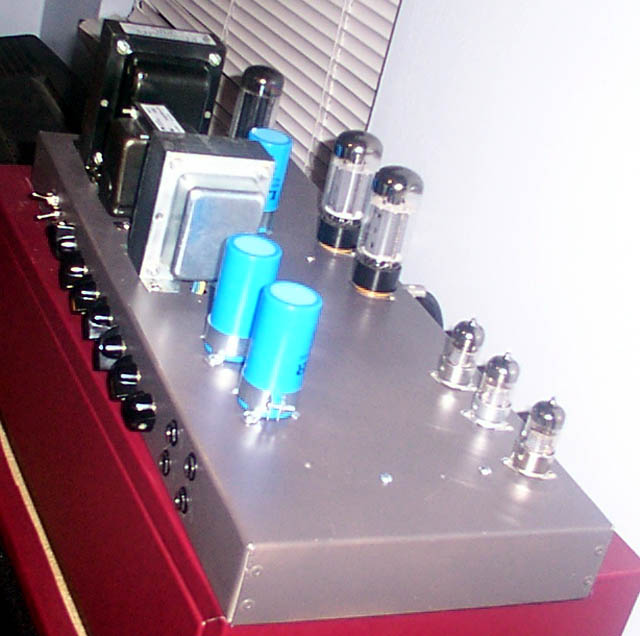

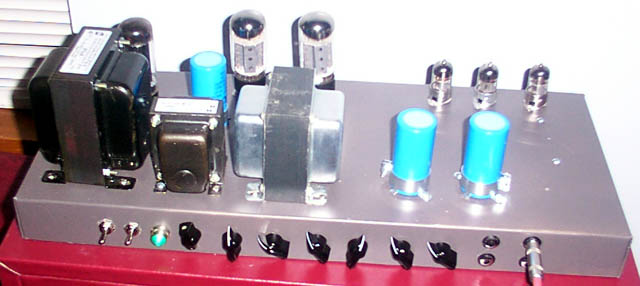

Back to 50 Watt plexi page will start a web page this weekend hopefully but here are some pics. sorry about the size haven't had time to edit them yet.
